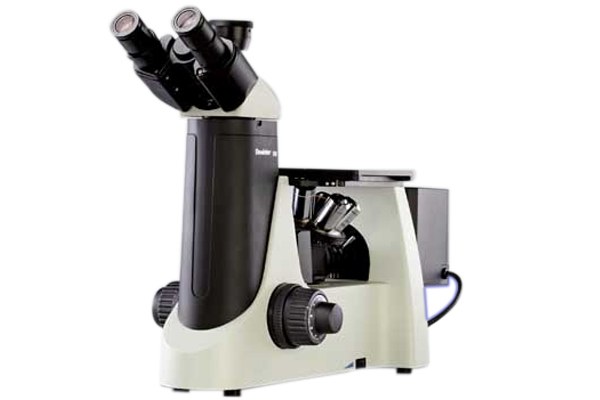

Trinocular Observation Head

  • Side and top observation head inclined at 45°.
  • Vertical phototube for micro photography light split (80:20).
  • Diopter adjustment ring on ocular tube (±5).
  • Interpupillary distance from 54mm to 75mm.

Eyepiece

  • Wide field eyepiece 10X (paired)
  • F.O.V. 22mm.

Illuminator

  • Epi-Koehler’s illumination. Aperture iris diaphragm halogen lamp 12V/50W AC.
  • Adjustable brightness. Filter wheel fixed in light path with blue, green & yellow filters.

Optional Accessories

  • Digital USB Microscopy Camera
  • Metallurgical Image Analysis Software

Objectives (Infinity Corrected)

  • M Long working distance plan 10X (WD 11.0mm)
  • M Long working distance plan 20X ( WD 9.0mm)
  • M Long working distance plan 50X (WD 3.8mm)
  • M Long working distance plan 100X (S.L.) Dry (WD .0.4mm)

Polarizing Outfit

  • Analyzer rotatable at 360°. Polarizer & Analyzer can be slide in/out of the optical path.

Mechanical Body

  • Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
  • Quadruple nosepiece on ball bearing.
  • Mechanical stage is 180mm X 155mm.
  • Moving range 80mm X 50mm.
  • Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
