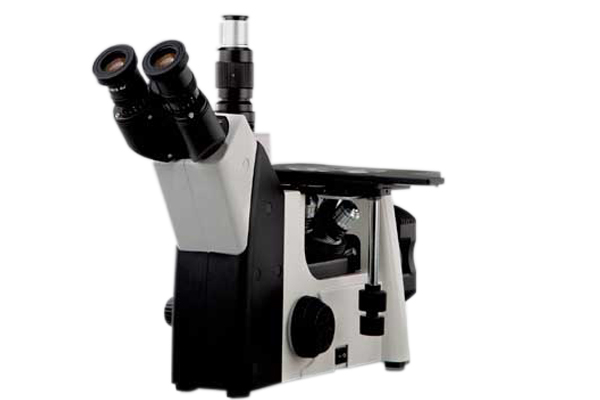

Trinocular Observation Head
- Side and top observation head inclined at 45°.
- Vertical phototube for micro photography light split (80:20).
- Diopter adjustment ring on ocular tube (±5).
- Interpupillary distance from 54mm to 75mm.
Eyepiece
- Wide field eyepiece 10X (paired)
- F.O.V. 18mm
Illuminator
- The Epi illuminator has 5W LED lamp adjustable brightness.
Optional Accessories
- Digital USB Microscopy Camera
- Metallurgical Image Analysis Software
Objectives (Infinity Corrected)
- M Long Working Distance Plan Achromatic 5X (WD 15.5 mm)
- M Long Working Distance Plan Achromatic 10X (WD 8.7mm)
- M Long Working Distance Plan Achromatic 20X (WD 8.8 mm)
- M Long Working Distance Plan Achromatic 50X (WD S L ) (5.1mm)
- M Long Working Distance Plan Achromatic 100 X ( WD SL (0.6mm) ( Optional )
Mechanical Body
- Co-axial focusing system with large knobs, Pre focusing lever & tension adjustment ring.
- Quadruple nosepiece on ball bearing.
- Mechanical stage is 180mmX155mm.
- Moving range: 75mmX40mm.
- The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.
