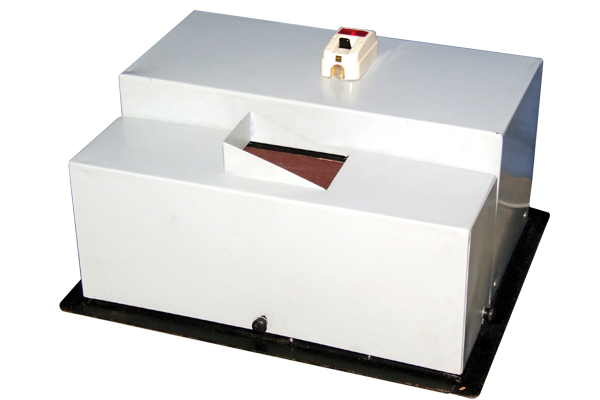

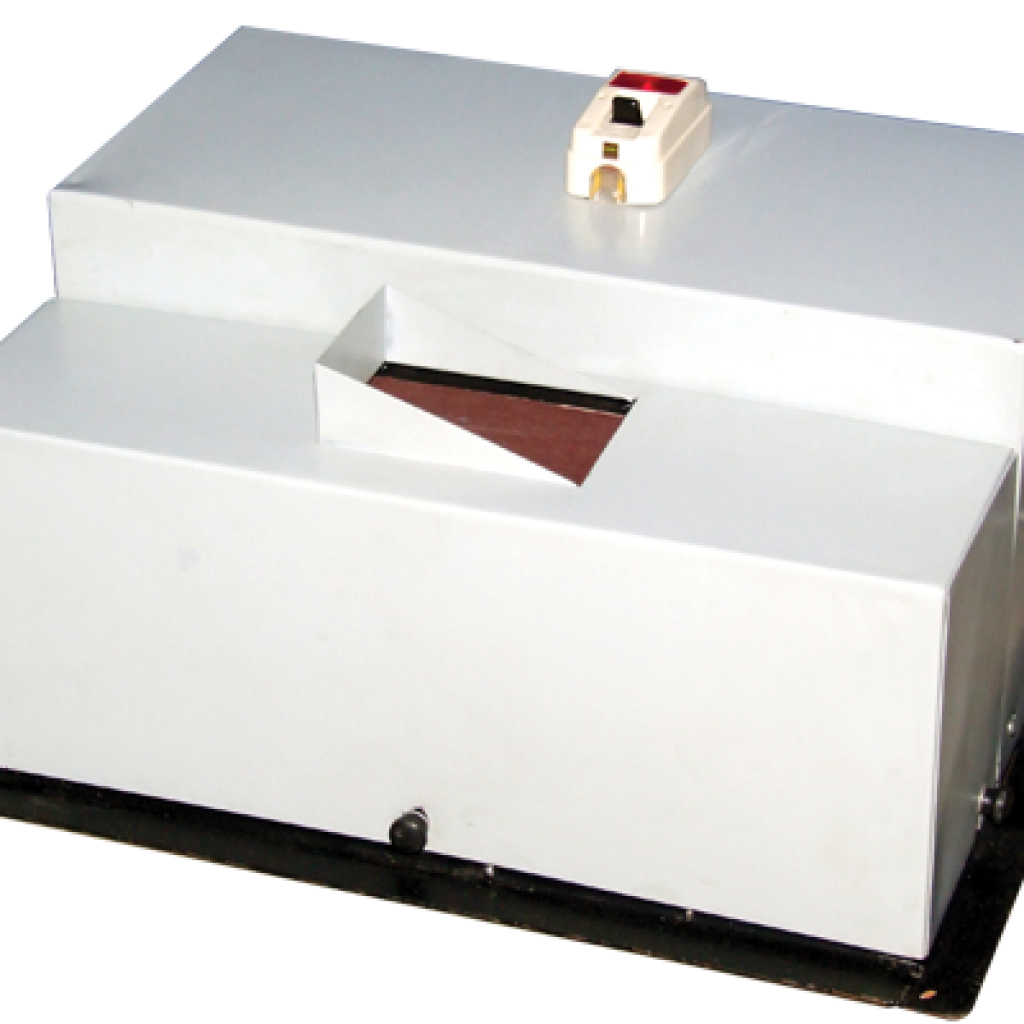

Belt Grinder

For Flat & Coarse Grinding before to fine grinding & Polishing , After Cutting Sample  the Specimen are to be grind in 36 , 60, 80 & 120 Grit Abrasive  Belt & paper

METLAB Belt Polisher is designed for initial rough grinding, with ½ & 1 HP motor. The grinder has rigid construction complete enclosed body with full cover mask in its base. Dynamically well balanced rollers made up of aluminium material

Technical  Specification :

Belt Size  :- 100X915mm Endless Belt
Pulleys System :- Balanced aluminium pulleys
Motor power :- 0.5 H.P & 1 HP  Single Phase
Simple Belt Change and alignment Mechanism
Operation :- Manual
Working on :- 220V in single phase

Application:

Metallurgical Laboratory, Forging Industries, Fasteners Industries, casting Industries, Iron & Steel Industries, Auto-Parts ancillaries.

This  Spectro Sample Polishing Machine is Used to Polish the Metal Samples Whose Chemical Analysis  to be done.

Features:

• The Machine Consists Of Heavy Duty Frame
• Abrasive Polishing Paper Mounted On Polishing Disc is used to Polish the Samples
• Rotating Disc With Vacuum Clamped Abrasive Disc
• Abrasive Paper Disc (350 MM Diameter, 40 MM Bore), 60 Grit
• Vacuum Abrasive Paper Disc Clamping
• Motor Starters For Disc And Blower To Protect Motors From Over Current
• Dynamically Balanced Disc
• Quick Paper Change (Single Bolt)
• Compact In Size

• Disc Diameter – 350 MM
• Disc Bore- 40 MM
• Single Speed – 2800 RPM

Variable Speed is also available

• Disc Motor – 1 OR 2 HP, 2800 Rpm , 50 HZ, 415 V Ac Supply
• Suction Motor – 1 HP, 1400 Rpm, 415 V Ac
• Starter – L & T Make Push Button D.O.L Starter Type With Overload Preventer
