Specifications

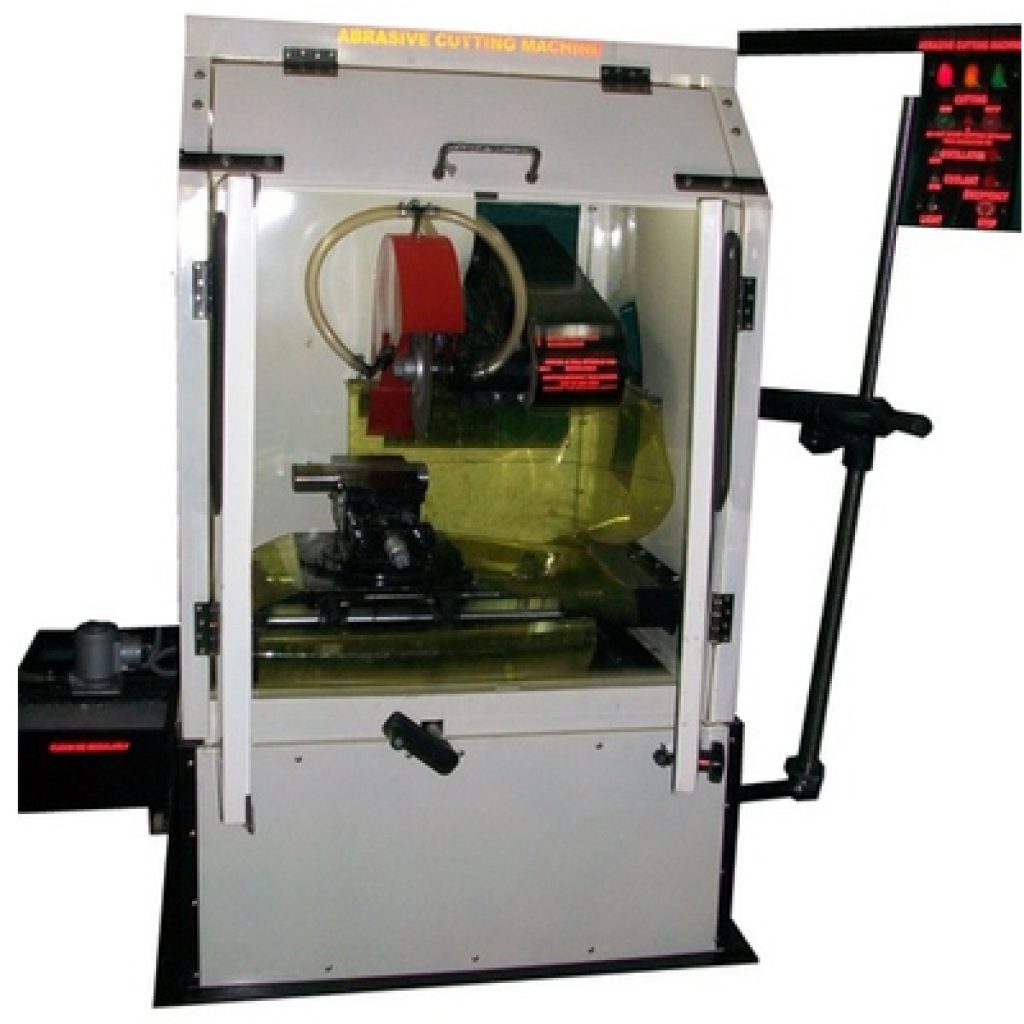

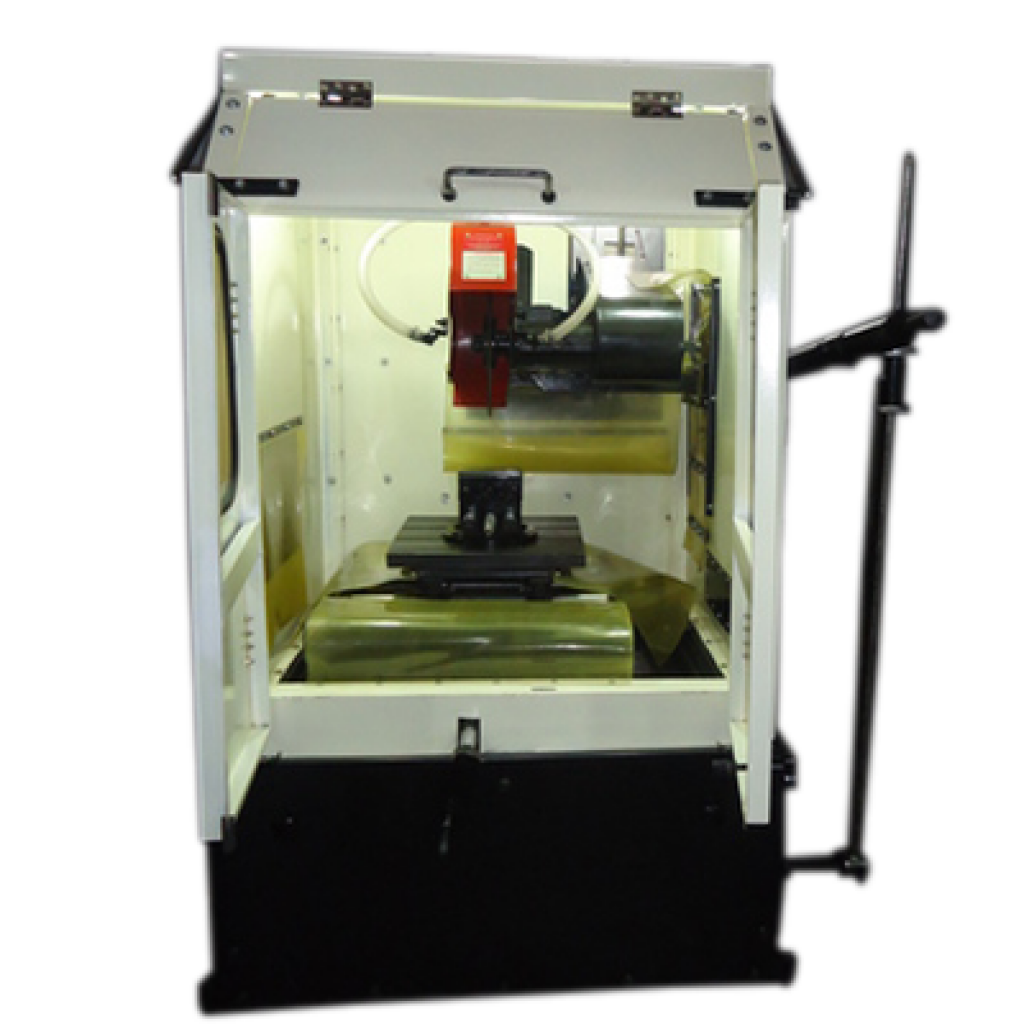

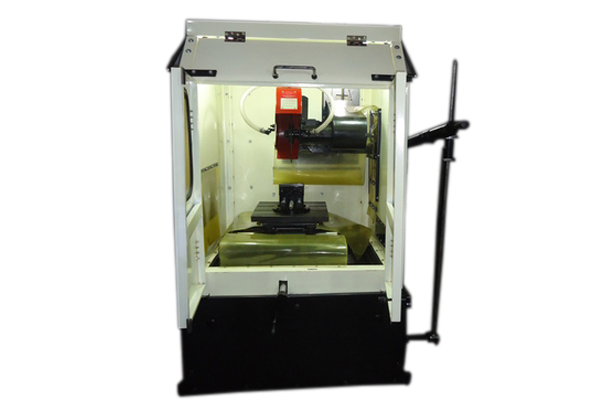

- Heavy duty sectioning machine for large cross sections, irregular components, in short time.
- Cutting wheel swings also with the oscillation movement for faster large sectioning than the chop type.
- Heavy duty motor is provided 15 HP 3 phase.
- Machine is covered with powder coated sheets or stainless steel sheets.
- Specially designed heavy steel vice to hold any kind of piece.
- Absolute minimal deformation, cool & burn-free sample production.
- Large and effective coolant delivery with adjustable focused vains fitted on wheel guard.
- Coolant circulation system is provided with suitable filtering arrangement.
- Double light attachments system is provided for clean and accurate cutting of samples.
- Large viewing window to monitor the cutting operation.
- Cutting Capacity : 150-170 mm
Optional Attachment
- Magnetic separator helps cleaning the coolant tank saving frequent cleaning
- Variable Speed AC Drive
